Cable Systems
Cable systems are selected according to voltage, temperature, conductor size, insulation concept, armor concept and installation conditions.
Cable dimensions
- Conductor diameter (mm)
- 4,50
- Insulation thickness (mm)
- 2,0
- Insulated conductor OD (mm)
- 8,50
- Sheath thickness (mm)
- 0,85
- Sheathed conductor OD (mm)
- 10,20
- Maximum cable dimensions (mm)
- 13,8 х 36,2
Curves & drawings
Curves & drawings

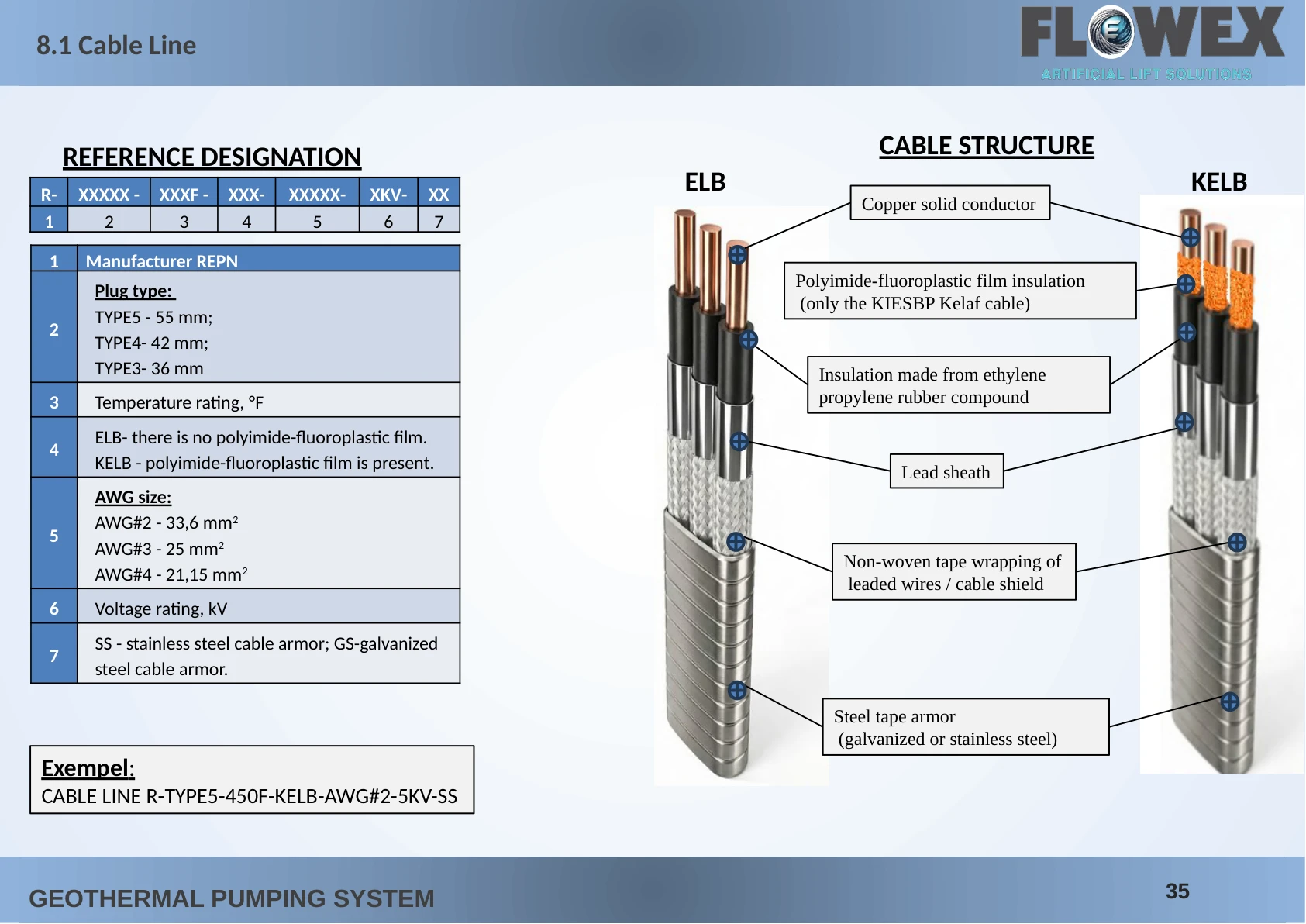

Open full sizeCable structure and reference designation
