Electric Submersible Pumps (ESP)

FlowEx offers ESP pump families for geothermal wells, with bearing designs, corrosion-resistant options and stage configurations selected for the operating conditions.

Operating frequency

TP 677

50 Hz · 2910 rpm

Operating flow range: 125–208 m³/h
Power per stage: 12.9 kW / 17.5 HP
Minimum casing (in / mm): 8.03 in / 204 mm
Shaft diameter (in / mm): 1.19 in / 30.2 mm

Nominal duty point per stage

Rated flow Q: 165 m3/h
Head H: 15,9 m
Efficiency (%): 75,0

Download technical data (PDF)

All pump series · 50 / 60 Hz · stage combinations

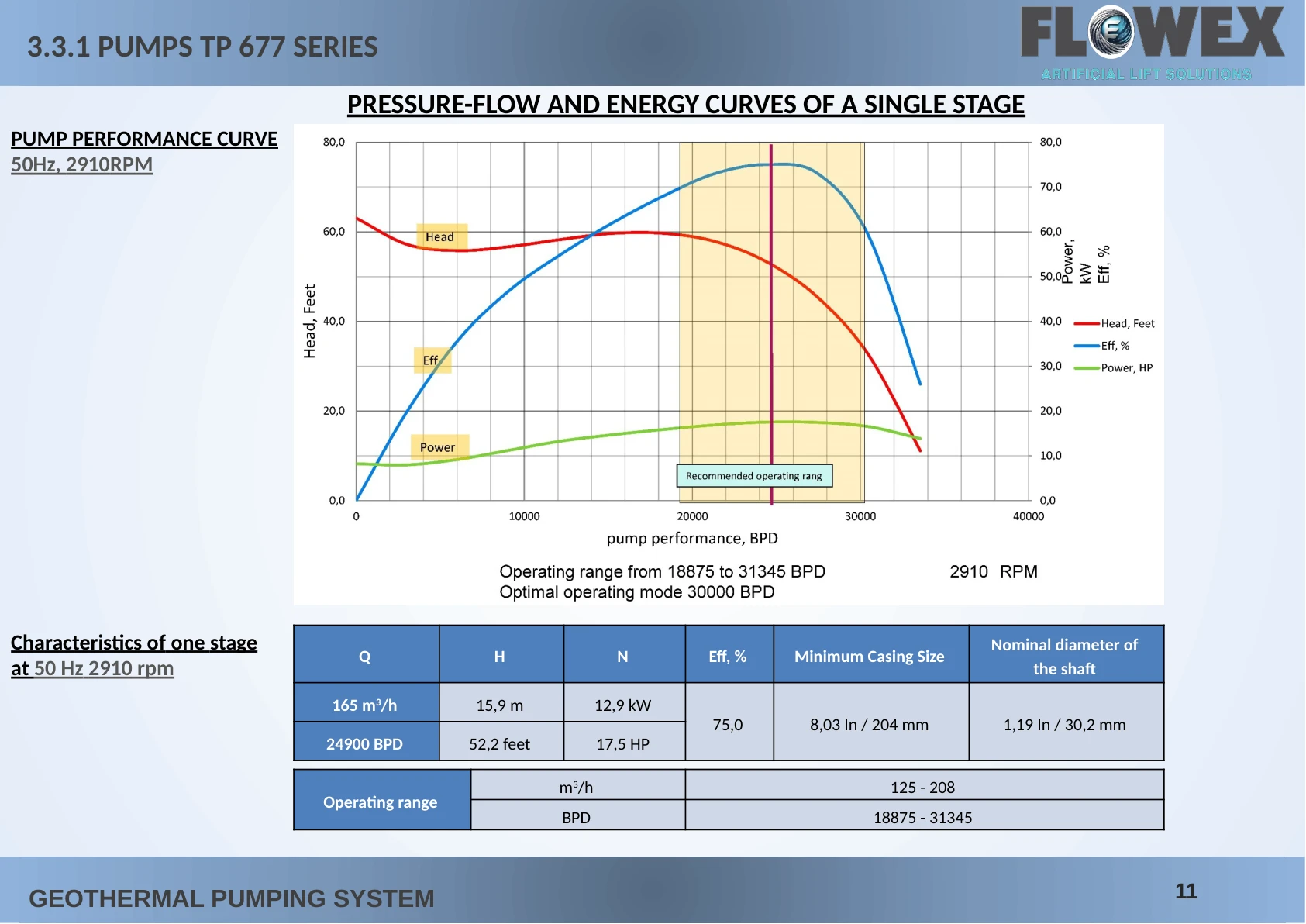

Curves & drawings
