Permanent Magnet Motors (PMM)

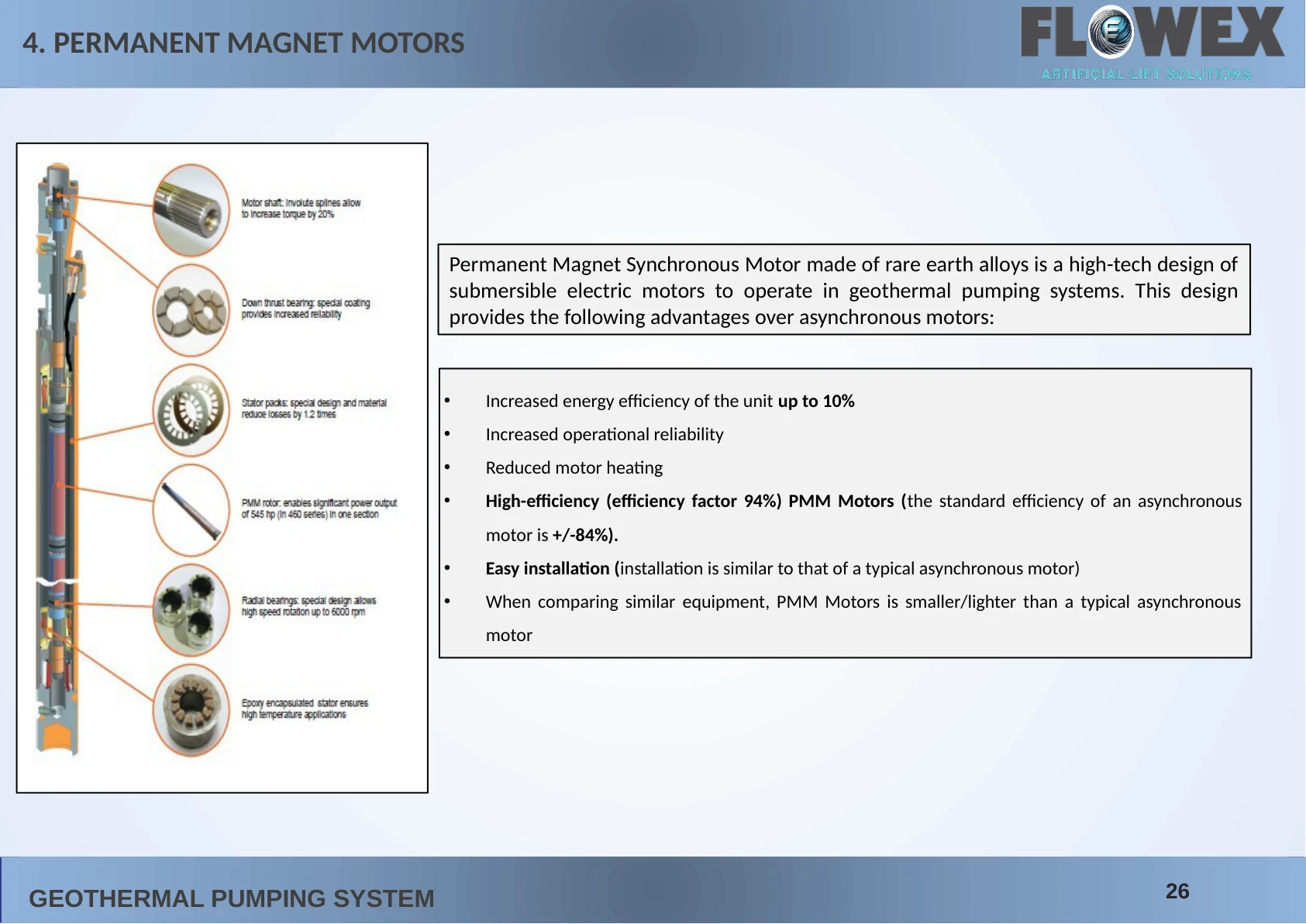

Permanent magnet motors are used where high efficiency, stable operation and controlled operation through a VSD are required for ESP systems.
Select a motor
Select the required 3600 rpm power class to see its characteristics.
PMSM-R-728-326HP-3600RPM
- Rated power (3000 / 3600 rpm)
- 200 / 240 kW
- HP class (3000 / 3600 rpm)
- 272 / 326 HP
- Voltage (3000 / 3600 rpm)
- 2800 / 3360 V
- Current
- 45 A
- Length
- 3937 mm
- Weight
- 592 kg / 1305 lb
- Minimum fluid velocity
- 0.20 m/s / 0.66 ft/s
728 motor range · electrical and mechanical data
Curves & drawings
Curves & drawings
Open full sizeChoose a drawing
